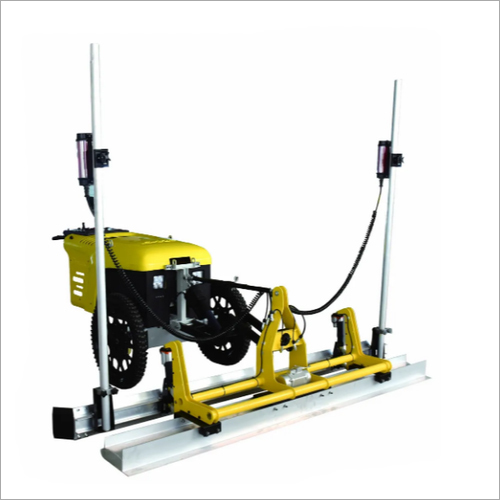

About LS-400 Stand on Laser Screed Machine
| Other Details: | |
| Brand | Space Line |
| Dimension | L 3155 X W 3175 X H 1910 mm |
| Paving Width | 2500 mm |
| Exciting Force | 100 Kg |
| Vibration Frequency | 50 Hz |
| Paving Thickness | 30 to 200 mm |
| Model Number | LS-400 |
LS-400 Stand on Laser Screed Machine that we are offering is popularly known among our customers owing to its superior design and high build quality. This machine is typically used to cut off excess wet concrete to bring the top surface of a slab to the proper grade and smoothness. It has got high build quality, sturdy construction, and resilience, therefore, this machine does not degrade in quality or become inferior in the long run. LS-400 Stand on Laser Screed Machine can be purchased from us at a budget-friendly price.
The LS-400 Laser Screed utilizes advanced laser technology from Topcon or Leica for highly accurate concrete leveling. Its micro-computer laser control system ensures repeatable surface flatness, making it a trusted choice for large warehouses, industrial settings, and projects demanding tight tolerances.
Robust and Efficient PowertrainEquipped with a powerful Changchai 390 diesel engine producing 22 hp, the LS-400 delivers consistent performance while maintaining a low fuel consumption rate. The machine features a heavy-duty steel frame, water-cooled system, and centralized lubrication to boost durability and reduce downtime during operation.
User-Friendly Operation for Enhanced ProductivityOperators benefit from ergonomic features like a hydraulic joystick steering system, responsive ride-on/stand-on controls, and LED lighting for improved visibility. Adjustable, wear-resistant screed plates and non-marking tires further enhance usability, while the wired remote option adds flexibility to machine management.
FAQ's of LS-400 Stand on Laser Screed Machine:
Q: How does the LS-400 ensure precise concrete surface leveling?
A: The LS-400 is equipped with a micro-computer laser control system compatible with Topcon or Leica laser receivers, offering leveling accuracy up to 2 mm. This high-precision system automatically guides the screed head to maintain consistent floor elevation across large slab areas.
Q: What is the process for operating the LS-400 on a construction site?
A: After initial setup, the operator stands or rides on the LS-400 and uses the hydraulic joystick for steering. The laser receiver communicates grade data, which the machine's control system uses to automatically adjust the screed head, vibrating it at 50 Hz for smooth, level concrete. Centralized automatic lubrication and the water-cooled engine support reliable, sustained use.
Q: When should I replace the screed plates on this machine?
A: The LS-400 is designed with replaceable, wear-resistant screed plates. They should be replaced when you notice significant wear or decreased efficiency in leveling, ensuring optimal performance and surface finish. Regular inspections after extensive daily use are recommended.
Q: Where can the LS-400 be effectively used?
A: This machine is well-suited for warehouse floors, large industrial slabs, and commercial concrete applications requiring high production rates (up to 4000 m2 per day). Its design supports optimal performance in diverse environments, including challenging jobsite conditions.
Q: What benefits does the LS-400 offer over traditional concrete leveling methods?
A: The LS-400 delivers higher efficiency, superior accuracy, and consistent results versus manual screeding. Features such as self-leveling, adjustable screed width, hydraulic drive, and solid rubber tires reduce labor, minimize rework, and boost overall productivity, especially on expansive concrete flooring projects.
Q: How often does the LS-400 require maintenance during operation?
A: Routine maintenance is streamlined thanks to centralized automatic lubrication and robust engineering. Daily checks of fuel, hydraulic oil, screed plates, and laser components are recommended before operation to maximize machine longevity and performance.
